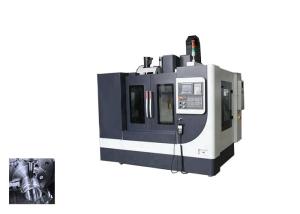

Customized CNC Control system High Rigidity Mould Box VMC S-1580
Introduce
International advanced linear rolling guide way pair are adopted on X, Y shafts, which is high rigidity, heavy-load, low friction; driving lead screw is heavy-load, low friction, high accuracy ball screw, spindle speed range is 40~6000 rpm,rapid speed is 24m/min. Timing and fixed quantity lubricant system is equipped, which prolongs the working life of machine, totally enclosed protection device is adopted, which assures the safety of worker and lustration of environment.
Product Characteristics
1.After natural and artificial aging, is stable and won't easy to become deformed.
2.With big power motor, capacity of heavy cutting is strong.
3.Integrated casting structure base, non chassis frame, won't leak oil.
4.Super big "人” type column, extra-wide square guideway, loading capacity is strong.
5.The overall framework is made of high toughness and high grade casting iron. High efficient annealing treatments relieves internal stress to ensure the lasting best rigidity and high precision.
APPLICATION AREA
IT is widely used in machinery manufacturing, mold manufacturing and other industries to process complex parts such as plate, plate, shell and mold, especially for auto parts and IT parts processing.After the workpiece is clamped once, milling, drilling, boring, reaming and other processes can be completed continuously.Can be used in a single set, but also can be composed of several production line processing parts.
PRODUCT PARAMETERS
| Item |
Unit |
S-1580 |
| X/Y/Z axis Travel |
mm |
1500/800/700 |
| Spindle Nose to Work table |
mm |
170-870 |
| Spindle Center to Column Distance |
mm |
810 |
| 3 Axis Guideway |
/ |
3 axis box guideway |
| Work table Size |
mm |
1700X800 |
| Max Loading |
kg |
1500 |
| T-slot (n um be r-size*dista nce) |
mm |
5-22X135 |
| 3 Axis Rapid Move Speed |
M/min |
15/15/12 |
| Cutting Feed Speed |
mrri/min |
0-10000 |
| Spindle Rotation Speed |
rpm |
8000 |
| Spindle Spec |
/ |
BT50 |
| Spindle Motor |
kw |
18.5 |
| 3 Axis Motor |
kw |
4.5/4.5/4.5 |
| Position Precision |
mm |
±0.005/300 |
| Repeat Position Precision |
mm |
±0.003 |
| Machine Weight |
kg |
13500 |
| Machine Size |
mm |
4400 X 3500 X 3400 |
FAQ
Q1. How to send my enquiry?
You can contact us by email, phone call, Instant Messenger (WhatsApp, WeChat, Skype).
Q2. How long can I get feedback after enquiry?
We will reply you within 6hrs in working day.
Q3. How can I choose the most suitable machines?
Please tell us your requirement of the machine, or you can also send us the products drawing, our engineer can help to choose the best model for you.
Q4. What's the main products of your company?
We specialized in many kinds of CNC machines, such as Wheel Repair CNC Lathe Machine, Vertical CNC Lathe Machine, Horizontal CNC Lathe Machine, Slant Bed CNC Lathe Machine, Universal Lathe Machine, Pipe Threading CNC Lathe Machine, CNC Milling Machine and CNC Vertical Machining center and so on.
Q5. Where is the factory located? How can I visit there?
Our factory is located in shenzhen City, guangdong Province, China. With very convenient transportation access, you can come by airplane or by high speed railway. And warmly welcome you to visit us.
Q6.Delivery time
Machines order takes 30 days after deposit payment received. Please inquiry sales.
